Part Number: A24801880, A37310880, A50413881, A54001880, A50584880, A50574840IM
Oil Rotary Vane Pumps Two-Stage
Because the gases being pumped are exposed to oil, rotary vane pumps are classified as wet positive displacement pumps. The use of oil as a coolant and sealer is a key feature of oil sealed rotary vane (OSRV) pumps.
Two-stage rotary vane vacuum pumps combine low ultimate pressure with high pumping rates with a two-stage compression mechanism. The food, chemical, pharmaceutical, and industrial sectors all make extensive use of them.
E2M Two Stage RVP
The robust mechanical oil-sealed EM series pumps have speeds between 0.7 and 275 m3/hr (30 and 206 CFM). They are quiet, small, and equipped with high dependability, sophisticated lubricating circuits, and accessories to meet specialized application requirements.
EM goods cater to two main areas of use.

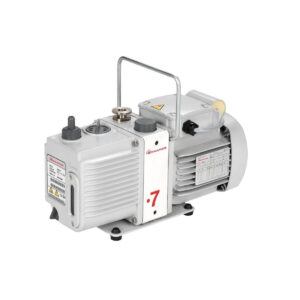

For your turbomolecular pump, the E2M0.7-2.5 and E2M18/28 are the perfect companions in scientific and lab settings.
E2M18/28, E2M40/80, and E2M175/275 provide incredibly durable solutions for demanding applications in industrial settings.
Features and Benefits
EXCELLENT OILS: fortified with ingredients that extend shelf life without affecting vapour pressure.
Gas ballast valve with large water vapor handling capacity.
Integrated IEC connector means NO CUSTOMER WIRING.
Examining the oil level and condition visually using an O-ring sealed sight glass.
LOW SURFACE TIME: air cooling via force.
WIDE VOLTAGE MOTORS: less varieties, covering all main countries.
General Product Information
| Weight | 44.00 kg |
| Connection vacuum outlet flange | Hose Nozzle 15 mm 3/4″ BSPP (G) Female |
| Power Supply Phase | 1-Ph |
| Supply Voltage | 1Ph 220-240V 50Hz |
| Dimension Length | 0.608 m |
| Supply Frequency | 50 Hz 60 Hz |
| Dimension Height | 0.266 m |
| Dimension Width | 0.180 m |
| dimensionsCombinedLengthWidthHeight | 0.608 m 0.608 m 0.608 m |
| Cooling Method | Air Cooling (forced – fan) |
Performance Data
| Power Total Rated @60Hz | 900.00 W |
| Power Total Rated @50Hz | 750.00 W |
| Pumping Speed @60Hz Nominal | 9.167 × 10⁻³ m³/s |
| Pumping Speed @50Hz Nominal | 7.639 × 10⁻³ m³/s |
| Pressure Water Vapour Max. | 3000.00 Pa |
| Rotational Speed @50Hz Nominal | 24.00 Hz |
| Capacity Water Vapour | 1.944 × 10⁻⁴ kg/s |
| maximumDisplacement50Hz | 8.944 × 10⁻³ m³/s |
| pressureUltimateWithGasBallast | 1.50 Pa |
| Pressure Ultimate | 0.100 Pa |
| Rotational Speed @60Hz Nominal | 28.67 Hz |
| maximumDisplacement60Hz | 0.011 m³/s |
| Rotational Speed Nominal | 28.67 Hz |
Environmental Conditions
| Temperature Ambient Operation Min. | 286.15 K |
Classification
| Product Pressure Range | Medium Vacuum – 1 mbar – 1*10⁻³ mbar |
| High / Medium / Rough Vacuum Classification | Medium Rough Vacuum Pump |
| Dry or Wet Pump | Wet pump |
| Vacuum Pump Technology | Oil Rotary Vane Pumps Two-Stage |
Lubricants
| Standard Lubricant | ULTRAGRADE™ Performance 19 |
Operation Conditions – Limitations
| Oil Capacity Min. | 1.200 × 10⁻³ m³ |
| Oil Capacity Max. | 1.500 × 10⁻³ m³ |
| Pressure Outlet Continous Max. | 1.500 × 10⁵ Pa |

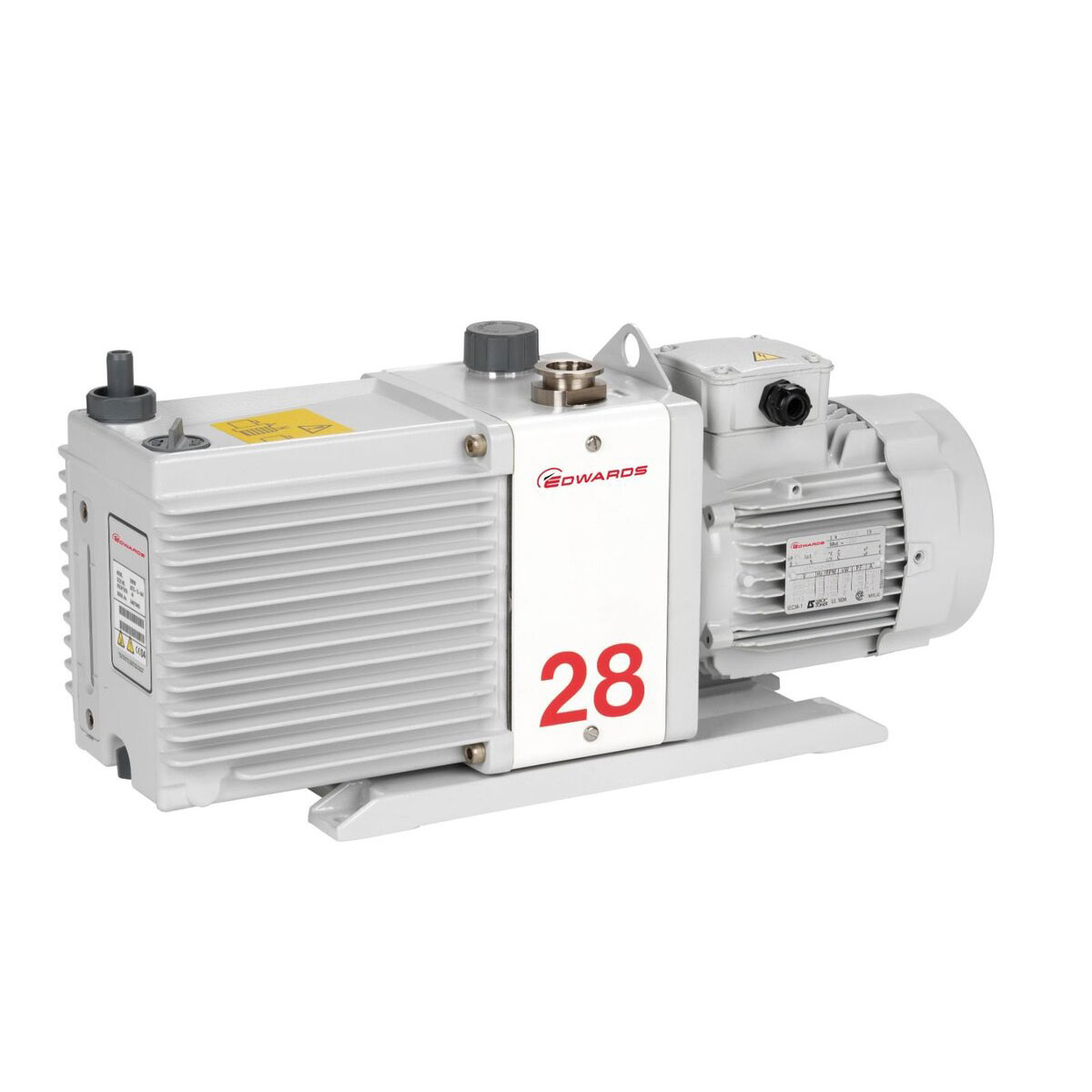

E2M28 – 220-240V 50/60Hz 1Ph (older motor – to be hard wired – Ultragrade Performance 19)
| Connection vacuum outlet flange | Hose Nozzle 15 mm 3/4″ BSPP (G) Female |
| Cooling Method | Air Cooling (forced – fan) |
| Pressure Ultimate | 0.100 Pa |
| Supply Voltage | 1Ph 220-240V 50Hz |
E2M28 – 100/200V 50/60Hz 1Ph set 200V (to be hardwired – Ultragrade Performance 19)
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Connection vacuum outlet flange | Hose Nozzle 15 mm 3/4″ BSPP (G) Female |
| Cooling Method | Air Cooling (forced – fan) |
| Pressure Ultimate | 0.100 Pa |
| Supply Voltage | 1Ph 100/200V 50/60Hz |
E2M28 – 115/200-230V 50/60Hz 1Ph with IEC60320 power connector C19 (Ultragrade Performance 19)
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Connection vacuum outlet flange | Hose Nozzle 15 mm 3/4″ BSPP (G) Female |
| Cooling Method | Air Cooling (forced – fan) |
| Pressure Ultimate | 0.100 Pa |
| Supply Voltage | 1Ph 115/230V 50/60Hz |
E2M28FX – 115/200-230V 50/60Hz 1Ph with IEC60320 power connector C19 (PFPE prepared)
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Connection vacuum outlet flange | Hose Nozzle 15 mm 3/4″ BSPP (G) Female |
| Cooling Method | Air Cooling (forced – fan) |
| Pressure Ultimate | 0.100 Pa |
| Supply Voltage | 1Ph 115/230V 50/60Hz |
E2M28 HC – IE3 Asia 50/60Hz 200V 3Ph 50/60Hz or 380V 3Ph 60Hz (to be hard wired – Ultragrade Performance 19)
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Connection vacuum outlet flange | Hose Nozzle 15 mm 3/4″ BSPP (G) Female |
| Cooling Method | Air Cooling (forced – fan) |
| Pressure Ultimate | 0.100 Pa |
| Supply Voltage | 3Ph 200V 50/60Hz |
E2M28 HC – IE3 EU/US 50/60Hz 380-400V 3Ph 50Hz or 230/460V 3Ph 60Hz (to be hard wired – Ultragrade Performance 19)
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Connection vacuum outlet flange | Hose Nozzle 15 mm 3/4″ BSPP (G) Female |
| Cooling Method | Air Cooling (forced – fan) |
| Pressure Ultimate | 0.100 Pa |
| Supply Voltage | 3Ph 380-400V 50Hz / 230/460V 60Hz |
E2M28FX – IE3 Asia 50/60Hz 200V 3Ph 50/60Hz or 380V 3Ph 60Hz (to be hard wired – PFPE prepared)
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Connection vacuum outlet flange | Hose Nozzle 15 mm 3/4″ BSPP (G) Female |
| Cooling Method | Air Cooling (forced – fan) |
| Pressure Ultimate | 0.100 Pa |
| Supply Voltage | 3Ph 200V 50/60Hz / 380V 60Hz |
E2M28FX – IE3 EU/US 380-400V 3Ph 50Hz or 230/460V 3Ph 60Hz (to be hard wired – PFPE prepared)
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Connection vacuum outlet flange | Hose Nozzle 15 mm 3/4″ BSPP (G) Female |
| Cooling Method | Air Cooling (forced – fan) |
| Pressure Ultimate | 0.100 Pa |
| Supply Voltage | 3Ph 380-400V 50Hz / 230/460V 60Hz |
E2M28 and E2M30 Rotary -Instructions
Accessory Fitting Kit -Instructions
EMF Clean Application Oil Drain Kits-Instructions
