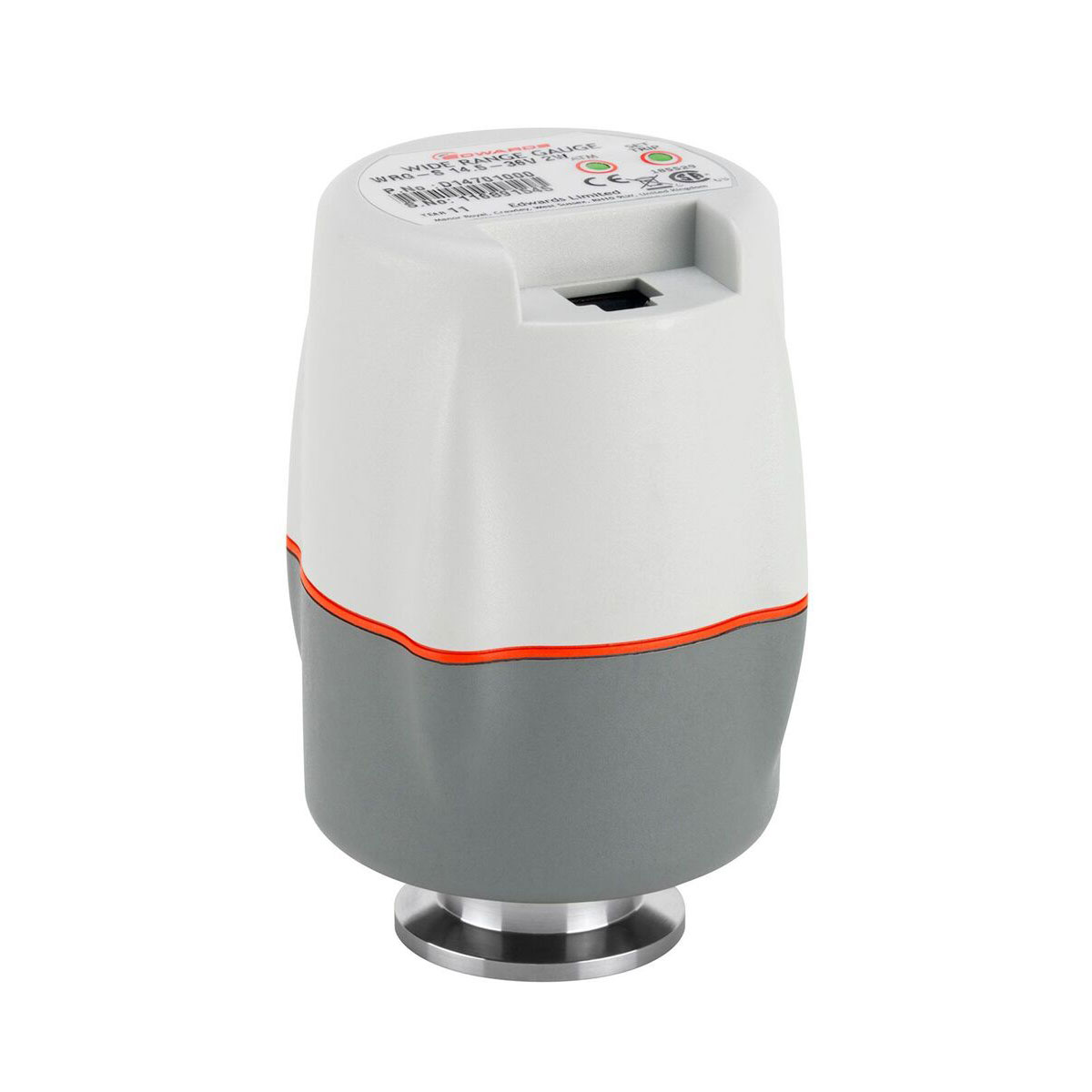

Features and Benefits
One push-button setting for the atmosphere
incredibly small, with a recessed electrical connector
Simple maintenance; replacement magnetron and Pirani elements separately
Available in low magnetic field version (SL) for extremely sensitive applications such as microscopy and mass spectrometry
extensive failure mode diagnostics infrastructure
Cable strain relief and improved ingress protection (IP44) are features of the D-type version that are compatible with Edwards TIC, TAG, and ADC controllers.
Magnetron employs a cutting-edge method for extremely dependable striking, even in situations with high vacuum or considerable contamination.
Automatic Pirani gauge element vacuum setting
Set point that is simple to program and covers the whole measuring range
Reduced HT voltage after ignition and low discharge current result in longer service intervals and gauge lifetime.
Microprocessor signal processing provides linear output in addition to a smooth transition between magnetron and Pirani outputs.
Specifications
General Product Information
| Connection Vacuum Inlet Flange |
DN 25 ISO-KF (NW25) |
| Weight |
0.800 kg |
| Supply Voltage |
DC 14.5-36V |
| Dimension Length |
0.065 m |
| IP Rating |
IP40 |
| Supply Frequency |
DC Voltage |
| Dimension Height |
0.112 m |
| Dimension Width |
0.065 m |
| Connection Power |
RJ45 (FCC 68) – Female |
| Recommended Controller |
ADC – Gauge Controller
TAG – Turbo & Instrument Controller
TIC – Turbo & Instrument Controller – control only
|
Environmental Conditions
| Temperature Ambient Operation Max |
333.15 K |
| Temperature Ambient Operation Min. |
278.15 K |
| Temperature Ambient Storage Min. |
273.15 K |
| Temperature Ambient Storage Max. |
343.15 K |
Classification
| Product Pressure Range |
High Vacuum – 1*10-3 – 1*10-7 mbar
Rough Vacuum 1000 mbar – 1 mbar
Ultra High Vacuum – 1*10-7 – 1*10-11 mbar
|
| Principle Of Measurement |
Cold-cathode Pirani combination vacuum gauge (IM inverted magnetron) |
Performance Data
| Measurement Uncertainty |
< 100 mbar ±15%
< 1×10-3 mbar ±30%
|
| Power Consumption Max |
2W |
| Pressure Measurement Max. |
1.013 × 10⁵ Pa |
| Pressure Measurement Min.. |
1.000 × 10⁻⁷ Pa |
Operation Conditions – Limitations
| Temperature Baking Max. (Elec. Removed) |
343.15 K |
| Pressure Inlet Max Overpressure |
6.000 × 10⁵ Pa |
Material of Construction
| Material Abbreviation |
St St |
| Material Exposed To Vacuum |
Stainless steel (AISI 304, 316, 321, 347); Fluoroelastomer, Soda lime glass; Tungsten; Trace of Nickel and Nickel Iron |
Connectivity – Communication Interface
| Communication Interfaces Customer |
0-10 V (analog output – linear) |
| Connection electrical comms interface connector |
RJ45 (FCC 68) – Female |
| Setpoint Quantity |
1 |
| Status Indicator |
LED |
Variants
| Variant Gauges |
WRG-S (linear 0-10V output) |
Variants
WRG-S – NW25 – St St Wide Range Gauge
| Connection electrical comms interface connector |
RJ45 (FCC 68) – Female |
| Connection Vacuum Inlet Flange |
DN 25 ISO-KF (NW25) |
| Pressure Measurement Max. |
1.013 × 10⁵ Pa |
| Pressure Measurement Min.. |
1.000 × 10⁻⁷ Pa |
WRG-S – NW25 – factory calibration
| Connection electrical comms interface connector |
RJ45 (FCC 68) – Female |
| Connection Vacuum Inlet Flange |
DN 25 ISO-KF (NW25) |
| Pressure Measurement Max. |
1.013 × 10⁵ Pa |
| Pressure Measurement Min.. |
1.000 × 10⁻⁷ Pa |
WRG-D – NW25 – St St Wide Range Gauge
| Connection electrical comms interface connector |
DSUB 9-PIN – Male |
| Connection Vacuum Inlet Flange |
DN 25 ISO-KF (NW25) |
| Pressure Measurement Max. |
1.013 × 10⁵ Pa |
| Pressure Measurement Min.. |
1.000 × 10⁻⁷ Pa |
WRG-S – DN 40 CF – St St Wide Range Gauge
| Connection electrical comms interface connector |
RJ45 (FCC 68) – Female |
| Connection Vacuum Inlet Flange |
DN 40 CF (2.75″) |
| Pressure Measurement Max. |
1.013 × 10⁵ Pa |
| Pressure Measurement Min.. |
1.000 × 10⁻⁷ Pa |
WRG-S – DN 40 CF – St St – factory calibration
| Connection electrical comms interface connector |
RJ45 (FCC 68) – Female |
| Connection Vacuum Inlet Flange |
DN 40 CF (2.75″) |
| Pressure Measurement Max. |
1.013 × 10⁵ Pa |
| Pressure Measurement Min.. |
1.000 × 10⁻⁷ Pa |
WRG-SL – NW25 – St St Wide Range Gauge
| Connection electrical comms interface connector |
RJ45 (FCC 68) – Female |
| Connection Vacuum Inlet Flange |
DN 25 ISO-KF (NW25) |
| Pressure Measurement Max. |
1.013 × 10⁵ Pa |
| Pressure Measurement Min.. |
1.000 × 10⁻⁷ Pa |
WRG-SL – NW25 – St St – factory calibration
| Connection electrical comms interface connector |
RJ45 (FCC 68) – Female |
| Connection Vacuum Inlet Flange |
DN 25 ISO-KF (NW25) |
| Pressure Measurement Max. |
1.013 × 10⁵ Pa |
| Pressure Measurement Min.. |
1.000 × 10⁻⁷ Pa |
