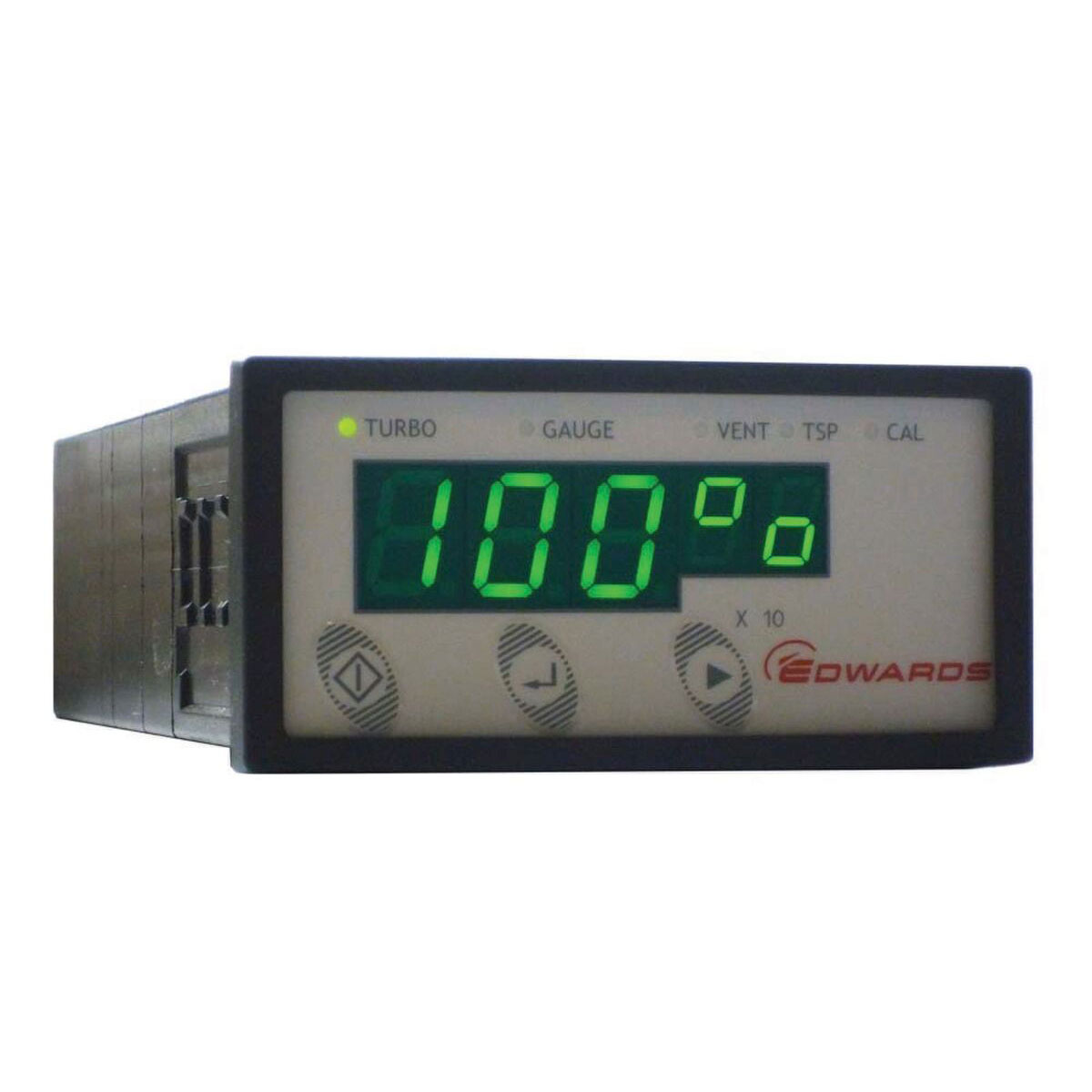

TAG – Turbo and Gauge Controller

Part Number: D39592880

TAG Series Gauge and TMP Controller

The Edwards Turbo and Active (TAG) controller is a compact, affordable pumping system controller that works with all Edwards EXT and nEXT turbomolecular pumps and is appropriate for a variety of vacuum applications. The pump speed or vacuum pressure is displayed on a big LED display, and control and operation are made simple with an intuitive push-button interface.

The TAG controller is a multifunctional system controller since it can also operate an Edwards active gauge, an air cooler, an air vent valve, and a backing pump. This little 24 V controller is perfect for use on benchtops or other suitable mobile platforms where reliability and functionality are crucial but space is at a premium.

Category:
Enquiry

Features and Benefits

Start/stop of a turbopump. Show pump speed as a percentage of maximum speed.
Visual performance display for running normally, accelerating, and decelerating.
Functions of gauge control and display – Commanding one active gauge, such as an APG, AIM, ASG, or WRG gauge.
Functions of gauge control and display – Commanding one active gauge, such as an APG, AIM, ASG, or WRG gauge.
Plus more: TAG can also be used to control a backing pump. A 24V XDD1 can be connected directly and share power with the turbopump and TAG. The TAG logic interface can also be used to regulate XDS and XDS35i pumps.

Specifications

General Product Information

Weight 0.330 kg
Supply Voltage DC 24V
Dimension Length 0.173 m
IP Rating IP40
Dimension Height 0.055 m
Dimension Width 0.095 m
Connection Power IEC EN60320 C14 – Male (for C13 plug on mains cable)
Measurement Channels 1

Environmental Conditions

Temperature Ambient Operation Max 313.15 K
Temperature Ambient Operation Min. 273.15 K
Temperature Ambient Storage Min. 243.15 K
Temperature Ambient Storage Max. 343.15 K

Performance Data

Power Total Rated 240.00 W
Pressure Displayed Max. 2.000 × 10⁵ Pa

Operation Conditions – Limitations

Altitude Max. 3000.00 m
