Part Number: D0300040001, D0300041001

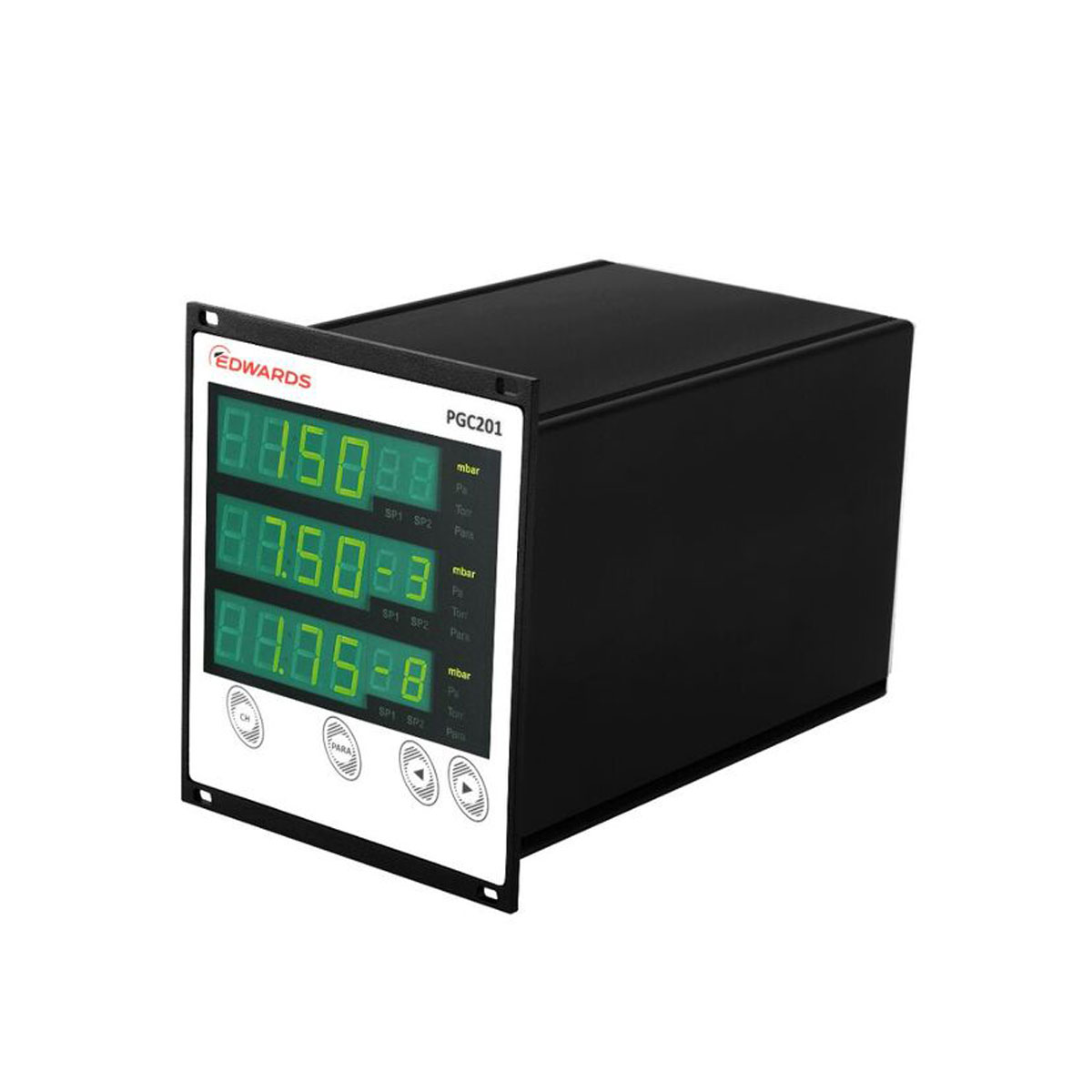

PGC Passive Gauge Controller
The Edwards PGC201 controller combines two measurement methods from the PRG and CPG gauges to span the pressure range between 10-9 and 1000 mbar. The PGC202 is designed to measure vacuum pressures in the range of 10-12 to 1000 mbar by combining PRG gauges with either an IG40 BA or an IG40 EX gauge. For the linked gauges, these two controllers offer monitoring and control capabilities.
Features and Benefits
Small 3-channel operational unit with a pressure range of -10-9 to 1000 mbar PGC201 and -10-12 to 1000 mbar PGC202 for passive sensors
Automatic conversion of Penning cold cathode operation (PGC201) from Pirani operation
UHV sensors, such as the Extractor measurement system (IG40 EX) (PGC202) or the Bayard-Alpert measurement system (IG40 BA).
lengths of measurement cables up to fifty meters
Simple to use
