Part Number: D0300042001
ADC Series Gauge Controller
Compact single gauge controller and display is the Active Digital Controller (ADC). Its controls are as simple as pushing buttons, and its LED display is brilliant. The ADC loads the relevant look-up database, detects compatible Edwards gauges automatically, and shows the pressure in widely used vacuum units.
The improved ADC has two set-point relays, two gauge connections, two analogue outputs, and an RS232 interface. The conventional ADC only shows the pressure in one of the available units. Two distinct gauges, such as APG200 and AIM, can now be supported by the ADC mk2 upgraded controller.
Features and Benefits
1200 to 5×10-4 mbar is the measurement range (7 decades)
Use in a vacuum is feasible
Data logging through USB interface or storing up to 2000 values in the internal memory for export to a PC • Cordless power supply with a regular 9 V battery or a 12 V a.c. converter included in the accessory pack
Choose from three pressure units: Pascal, Torr, and mbar.
The accessory pack contains Windows applications for assessing data storage and PC analysis.
General Product Information
| Weight | 0.230 kg |
| Dimension Length | 0.063 m |
| IP Rating | IP40 |
| Supply Frequency | DC Voltage |
| Dimension Height | 0.120 m |
| Dimension Width | 0.060 m |
Environmental Conditions
| Temperature Ambient Operation Min. | 278.15 K |
| Temperature Ambient Storage Min. | 253.15 K |
| Temperature Ambient Storage Max. | 333.15 K |
Classification
| Product Pressure Range | Rough Vacuum 1000 mbar – 1 mbar
Medium Vacuum – 1 mbar – 1*10-3 mbar |
| Principle Of Measurement | Pirani piezoelectric combination vacuum gauge |
Performance Data
| Pressure Measurement Max. | 1.200 × 10⁸ Pa |
| Pressure Measurement Min. | 50.00 Pa |
Connectivity – Communication Interface
| Connection electrical comms interface connector | USB micro – Female |

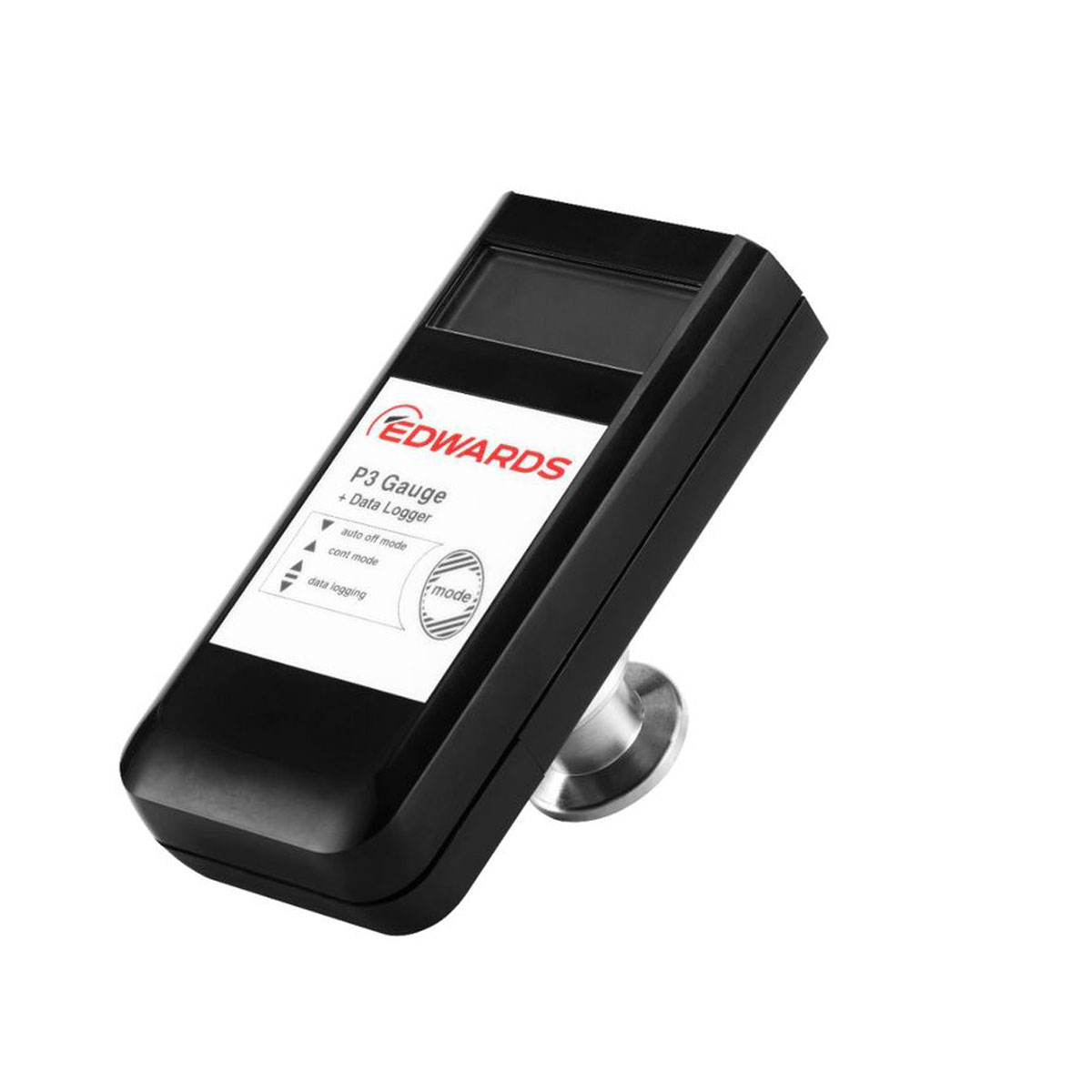

P3 – Handheld Gauge
P3 – Handheld Gauge – factory calibration
