nEXT85

Part Number: B8G000880, B8G200840

Turbomolecular Pumps Mechanical

The kinetic vacuum pumps known as turbomolecular pumps (TMPs) run on a rotor that spins extremely quickly, often at 24,000 to 90,000 RPM. They typically use pumping speeds of between 10 and 4,000 l/s and operate at high to ultra-high pressures in the range of 10-3 to 10-11 mbar. They are extensively employed in industrial and scientific processes including vacuum deposition, mass spectrometry, and surface analysis that call for exact and hygienic vacuum conditions. They are perfect for many manufacturing and laboratory applications since they can run continuously for extended periods of time.

nEXT Pumps

Hybrid bearing pumps with integrated controls for pumping speeds ranging from 47 to 1250 ls-1 are known as nEXT turbomolecular pumps.

A hybrid bearing compound turbomolecular pump is called the nEXT. nEXT pumps combine an enhanced rotor design with a novel molecular drag stage, our well-proven bearing technology (oil lubricated ceramic lower bearing with dry permanent magnetic upper bearing), and user serviceability to give improved pumping speed and compression ratios. They have built-in drives for sensorless motors operating at 24 to 48 volts DC, which are fully compatible with our selection of TAG and TIC controllers.

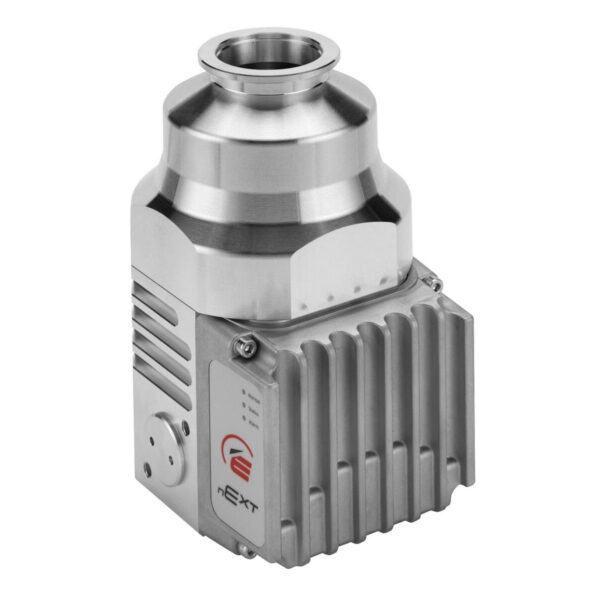

nEXT85

Edwards provides a tiny and compact turbomolecular pump platform that is perfect for analytical instruments and the research and development industry with the nEXT85 and nEXT55 models.

Category: Turbomolecular Pumps

Enquiry

Features and Benefits

Minimal power, minimal vibration, and a clean vacuum are guaranteed by the upper magnetic bearing.
great speeds and great compression are delivered via optimized rotor designs.
A variety of variations are available that are appropriate for a wide range of applications: T is an extra regenerative stage that increases compression and boosts the backup pressure capability; H is an optimized rotor design for high light gas compression; and D is the regular nEXT pump form.
Integrated electronics/controller: provides serial or direct I/O control; for simpler systemization, it can be linked to one of our TAG or TIC controllers.
Completely user-serviceable: little tooling is needed to replace the oil cartridge and bearings in the field.
Inlet screen: normal supply

Specifications

General Product Information

Connection Vacuum Inlet Flange	DN 100 ISO-K
Weight	3.20 kg
Connection vacuum outlet flange	DN 16 ISO-KF (NW16)
Supply Voltage	DC 24V DC 48V
Dimension Length	0.132 m
IP Rating	IP64
Supply Frequency	DC Voltage
Dimension Height	0.165 m
Dimension Width	0.117 m
dimensionsCombinedLengthWidthHeight	0.132 m 0.132 m 0.132 m
Connection Power	DSUB 15-PIN – Male (flying lead 300 mm)
Recommended Controller	TIC – Turbo & Instrument Controller – power and control
Cooling Method	Air Cooling (forced – fan) Water Cooling Air Cooling (convection)
Connection Purge Gas Ballast Vent Connector	1/8″ BSPP (G) Female 1/8″ BSPP (G) Female
Connection Cooling	1/8″ BSPP (G) Female

Environmental Conditions

Temperature Ambient Operation Max	313.15 K
Temperature Ambient Operation Min.	278.15 K
Temperature Ambient Storage Min.	243.15 K
Temperature Ambient Storage Max.	343.15 K
magneticFieldResistanceMaxForAMagneticFieldAllDirections	5.000 × 10⁻³ T

Classification

High / Medium / Rough Vacuum Classification	High Vacuum Pump
Dry or Wet Pump	Dry pump
Vacuum Pump Technology	Turbomolecular pump – hybrid bearing

Performance Data

Power Total Rated	80.00 W
Pressure Ultimate	5.000 × 10⁻⁷ Pa
Rotational Speed Nominal	1500.00 Hz
Pumping Speed Nominal	0.086 m³/s
Ramp Up Time	130.00 s
Pressure Backing Max.	1800.00 Pa
Pumping Speed Ar Nominal	0.084 m³/s
Compression Ratio N2	1.000 × 10¹¹
Compression Ratio He	8.000 × 10⁶
Compression Ratio H2	2.000 × 10⁵
Pumping Speed Helium Nominal	0.080 m³/s
Pumping Speed H2 Nominal	0.060 m³/s
compressionRatioArgon	1.000 × 10¹¹

Connectivity – Communication Interface

Communication Interfaces Customer	RS485 (serial) RS232 (serial) Parallel I/O USB
Connection electrical comms interface connector	DSUB 15-PIN – Male (flying lead 300 mm) USB micro – Female
Communication Interface Protocol	DX protocol
Connection Accessories Connector	Phoenix Contact M8 4-pin connector Female (SACC-DSI-M 8FS-4CON-M12/0.5)

Variants

Installation	Vertical / upright to horizontal
variantTmpPerformanceModel	D – Duplex
variantTmpMotorPower	80W
variantTmpBackingPortInterstagePortFlangeAndPosition85	Backing port 16KF (NW16) B270 – top down view at TMP rotor 270° clockwise from electronics
variantTmpSingleOrTrippleBackingPortBody	Single Backing Port Body

Operation Conditions – Limitations

Flow Cooling Water Min.	4.167 × 10⁻⁶ m³/s
Temperature Cooling Water Max.	313.15 K
Temperature Cooling Water Min.	283.15 K

Variants

Short Description	Part Number	variant Tmp Performance Model	variant Tmp Motor Power	variant Tmp Backing Port Interstage Port Flange And Position85	variant Tmp Single Or Tripple Backing Port Body
nEXT85D – ISO100 NW16 80W	B8G210101	D – Duplex	80W	Backing port 16KF (NW16) B270 – top down view at TMP rotor 270° clockwise from electronics	Single Backing Port Body
nEXT85D – NW40 NW16 – 80W	B8G210A01	–	–	–	–
nEXT85D – ISO63 NW16 80W	B8G210B01	D – Duplex	80W	Backing port 16KF (NW16) B270 – top down view at TMP rotor 270° clockwise from electronics	Single Backing Port Body
nEXT85D – ISO63 NW16 80W (3 port body)	B8G210B07	–	–	–	–
nEXT85D – CF63 NW16 – 80W	B8G210C01	D – Duplex	80W	Backing port 16KF (NW16) B270 – top down view at TMP rotor 270° clockwise from electronics	Single Backing Port Body
nEXT85D – CF63 NW16 80W (3 port body)	B8G210C07	D – Duplex	80W	Backing port 16KF (NW16) B270 – top down view at TMP rotor 270° clockwise from electronics	Tripple Backing Port Body
nEXT85iD – ISO63 B NW16 IP NW16 – 80W	B8G211B01	D – Duplex	80W	Backing port 16KF (NW16) B270 – top down view at TMP rotor 270° clockwise from electronics Interstage port 16KF (NW16) IP270 – top down view at TMP rotor 270° clockwise from electronics	Single Backing Port Body
nEXT85iD – ISO63 BP NW16 IP NW25 80W	B8G214B01	D – Duplex	80W	Backing port 16KF (NW16) B270 – top down view at TMP rotor 270° clockwise from electronics Backing port 25KF (NW25) B270 – top down view at TMP rotor 270° clockwise from electronics	Single Backing Port Body
nEXT85D – ISO100 NW16 – 80W (BP position 180)	B8G220101	–	–	–	–
nEXT85D – ISO63 BP180 NW16 80W	B8G220B01	D – Duplex	80W	Backing port 16KF (NW16) B180 – top down view at TMP rotor 180° clockwise from electronics	–
nEXT85iD – ISO63 BP NW16 IP NW25 – 80W (BP position 90, IP position 270)	B8G234B01	D – Duplex	80W	Backing port 16KF (NW16) B90 – top down view at TMP rotor 90° clockwise from electronics	–
nEXT85D – ISO100 NW25 80W	B8G240101	D – Duplex	80W	Backing port 25KF (NW25) B270 – top down view at TMP rotor 270° clockwise from electronics	–
nEXT85D – ISO100 NW25 – 80W (fine inlet screen)	B8G240105	–	–	–	–
nEXT85D – ISO100 BP NW25 – (Perkin Elmer, with connectors)	B8G2401H1	D – Duplex	80W	Backing port 25KF (NW25) B270 – top down view at TMP rotor 270° clockwise from electronics	–
nEXT85D – ISO63 NW25 – 80W	B8G240B01	D – Duplex	80W	Backing port 25KF (NW25) B270 – top down view at TMP rotor 270° clockwise from electronics	–
nEXT85iD – ISO100 B NW25 i NW25 – 80W (BP position 270, IP position 270)	B8G244101	D – Duplex	80W	Backing port 25KF (NW25) B270 – top down view at TMP rotor 270° clockwise from electronics Interstage port 25KF (NW25) IP270 – top down view at TMP rotor 270° clockwise from electronics	–
nEXT85iD – ISO63 BP NW25 IP NW25 – 80W (BP position 270, IP position 270)	B8G244B01	D – Duplex	80W	Backing port 25KF (NW25) B270 – top down view at TMP rotor 270° clockwise from electronics Interstage port 25KF (NW25) IP270 – top down view at TMP rotor 270° clockwise from electronics	–
nEXT85D – ISO100 NW25 – 80W (BP position 180)	B8G250101	D – Duplex	80W	–	–
nEXT85H – ISO100 NW16 – 80W	B8G410101	H – High Compression	80W	Backing port 16KF (NW16) B270 – top down view at TMP rotor 270° clockwise from electronics	–
nEXT85H – NW40 NW16 – 80W	B8G410A01	–	–	–	–
nEXT85H – ISO63 NW16 80W	B8G410B01	H – High Compression	80W	Backing port 16KF (NW16) B270 – top down view at TMP rotor 270° clockwise from electronics	–
nEXT85H – CF63 NW16 – 80W	B8G410C01	H – High Compression	80W	Backing port 16KF (NW16) B270 – top down view at TMP rotor 270° clockwise from electronics	–
