Features and Benefits
360-degree visual pressure indicator LED light ring
smaller footprint
Multipoint digital/analog star striker
broad spectrum power source
Compatible with drop-in
fresh magnets
Relay set-point
Vacuum Gauges
Enquiry
AIM200 – Series
Broad Range Vacuum Gauging
When measuring pressure over a large range and requiring exceptional accuracy throughout, broad range vacuum gauges are the ideal option. To guarantee the precision and control of your system, you need trustworthy vacuum gauges. The AIM Series Cold Cathode Gauge, the WRG Series Cold Cathode Combination Gauge, and the APG Series Pirani Gauge are some of our vacuum gauging options.
AIM Series Cold Cathode Gauge

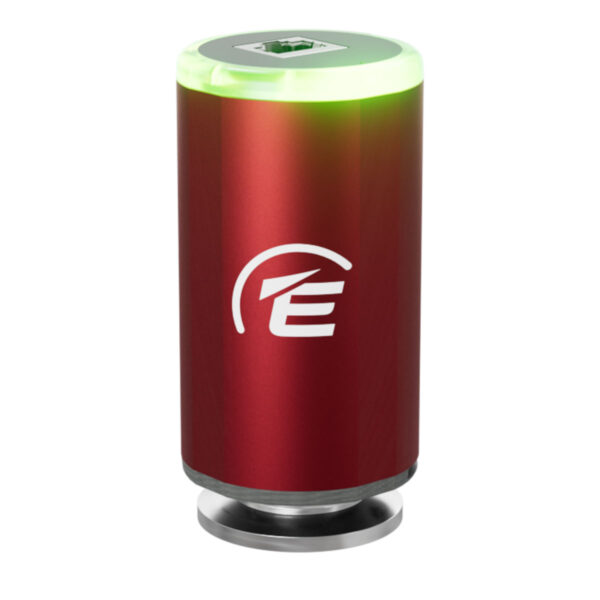

Because of its compact size, 360 degree LED light ring, integrated set-points, and flexibility in connections and outputs, Edwards’ new Active Inverted Magnetron Gauge AIM200 is dependable and robust, making it ideal for a variety of applications ranging from industrial processes to scientific equipment. Combining the gauge head and gauge controller into a single, compact unit, the AIM200 boasts a very low stray magnetic field, a smaller footprint, and an enhanced striking mechanism, making it an excellent option for use in analytical applications where the gauge must be mounted close to delicate equipment.
Specifications
General Product Information
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Weight | 0.350 kg |
| Supply Voltage | DC 15-48V |
| Dimension Length | 0.092 m |
| IP Rating | IP40 |
| Supply Frequency | DC Voltage |
| Dimension Height | 0.046 m |
| Dimension Width | 0.045 m |
| Connection Power | RJ45 (FCC 68) – Female |
Environmental Conditions
| Temperature Ambient Operation Max | 323.15 K |
| Temperature Ambient Operation Min. | 273.15 K |
Classification
| Product Pressure Range | High Vacuum – 1*10-3 – 1*10-7 mbar
Medium Vacuum – 1 mbar – 1*10-3 mbar |
| Principle Of Measurement | Cold-cathode vacuum gauge (IM inverted magnetron) |
Material of Construction
| Material Body | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 |
| Material Exposed To Vacuum | Stainless Steel 316L and 304L, Glass, Molybdenum, Trace of Nickel and Nickel iron |
| Material Filament | Tungsten/Rhenium |
Operation Conditions – Limitations
| Pressure Inlet Continous Max. | 1.500 × 10⁵ Pa |
| Temperature Baking Max. (Elec. Removed) | 423.15 K |
| Pressure Inlet Max Overpressure | 1.000 × 10⁶ Pa |
| Temperature Baking Max. | 323.15 K |
Performance Data
| Measurement Uncertainty | 1×10-2 to 1×10-8 mbar ±30% |
| Power Consumption Max | 4W |
| Pressure Measurement Max. | 1.00 Pa |
| Pressure Measurement Min.. | 1.000 × 10⁻⁷ Pa |
Variants
| Variant Gauges | AIM200-S (S-shape analog output, setpoint) |
| Certificated Pressure Measurement | None |
Connectivity – Communication Interface
| Connection electrical comms interface connector | RJ45 (FCC 68) – Female |
| Setpoint Quantity | 0 |
| Status Indicator | LED Light Ring |
| Communication Interface Protocol | 2.0 – 10 V S-shape with pressure AIM200 |
Variants
| Short Description | Part Number | Connection Vacuum Inlet Flange |
|---|---|---|
| AIM200 – S – NW25 | D2G0021150 | DN 25 ISO-KF (NW25) |
| AIM200 – S – NW25 – CAL | D2G002115C | DN 25 ISO-KF (NW25) |
| AIM200 – X – NW40 | D2G0031100 | DN 40 ISO-KF (NW40) |
| AIM200 – X – NW40 – CAL | D2G003110C | DN 40 ISO-KF (NW40) |
| AIM200 – G – NW40 | D2G0031120 | DN 40 ISO-KF (NW40) |
| AIM200 – G – NW40 – CAL | D2G003112C | DN 40 ISO-KF (NW40) |
| AIM200 – O – NW40 | D2G0031130 | DN 40 ISO-KF (NW40) |
| AIM200 – O – NW40 – CAL | D2G003113C | DN 40 ISO-KF (NW40) |
| AIM200 – Q – NW40 | D2G0031140 | DN 40 ISO-KF (NW40) |
| AIM200 – Q – NW40 – CAL | D2G003114C | DN 40 ISO-KF (NW40) |
| AIM200 – S – NW40 | D2G0031150 | DN 40 ISO-KF (NW40) |
| AIM200 – S – NW40 – CAL | D2G003115C | DN 40 ISO-KF (NW40) |
| AIM200 – X – DN 40 CF | D2G0041100 | DN 40 CF (2.75″) |
| AIM200 – X – DN 40 CF – CAL | D2G004110C | DN 40 CF (2.75″) |
| AIM200 – G – DN 40 CF | D2G0041120 | DN 40 CF (2.75″) |
| AIM200 – G – DN 40 CF – CAL | D2G004112C | DN 40 CF (2.75″) |
| AIM200 – O – DN 40 CF | D2G0041130 | DN 40 CF (2.75″) |
| AIM200 – O – DN 40 CF – CAL | D2G004113C | DN 40 CF (2.75″) |
| AIM200 – Q – DN 40 CF | D2G0041140 | DN 40 CF (2.75″) |
| AIM200 – Q – DN 40 CF – CAL | D2G004114C | DN 40 CF (2.75″) |
| AIM200 – S – DN 40 CF | D2G0041150 | DN 40 CF (2.75″) |
| AIM200 – S – DN 40 CF – CAL | D2G004115C | DN 40 CF (2.75″) |
| AIM200 – XS – NW25 – 9-Pin DSUB | D2G0121200 | DN 25 ISO-KF (NW25) |
| AIM200 – XS – NW25 – 9-Pin DSUB – CAL | D2G012120C | DN 25 ISO-KF (NW25) |
| AIM200 – GS – NW25 – 9-Pin DSUB | D2G0121220 | DN 25 ISO-KF (NW25) |
| AIM200 – GS – NW25 – 9-Pin DSUB – CAL | D2G012122C | DN 25 ISO-KF (NW25) |
| AIM200 – OS – NW25 – 9-Pin DSUB | D2G0121230 | DN 25 ISO-KF (NW25) |
| AIM200 – OS – NW25 – 9-Pin DSUB – CAL | D2G012123C | DN 25 ISO-KF (NW25) |
| AIM200 – QS – NW25 – 9-Pin DSUB | D2G0121240 | DN 25 ISO-KF (NW25) |
| AIM200 – QS – NW25 – 9-Pin DSUB – CAL | D2G012124C | DN 25 ISO-KF (NW25) |
| AIM200 – XS – NW40 – 9-Pin DSUB | D2G0131200 | DN 40 ISO-KF (NW40) |
| AIM200 – XS – NW40 – 9-Pin DSUB – CAL | D2G013120C | DN 40 ISO-KF (NW40) |
| AIM200 – GS – NW40 – 9-Pin DSUB | D2G0131220 | DN 40 ISO-KF (NW40) |
| AIM200 – GS – NW40 – 9-Pin DSUB – CAL | D2G013122C | DN 40 ISO-KF (NW40) |
| AIM200 – OS – NW40 – 9-Pin DSUB | D2G0131230 | DN 40 ISO-KF (NW40) |
| AIM200 – OS – NW40 – 9-Pin DSUB – CAL | D2G013123C | DN 40 ISO-KF (NW40) |
| AIM200 – QS – NW40 – 9-Pin DSUB | D2G0131240 | DN 40 ISO-KF (NW40) |
| AIM200 – QS – NW40 – 9-Pin DSUB – CAL | D2G013124C | DN 40 ISO-KF (NW40) |
| AIM200 – XS – DN 40 CF – 9-Pin DSUB | D2G0141200 | DN 40 CF (2.75″) |
| AIM200 – XS – DN 40 CF – 9-Pin DSUB – CAL | D2G014120C | DN 40 CF (2.75″) |
| AIM200 – GS – DN 40 CF – 9-Pin DSUB | D2G0141220 | DN 40 CF (2.75″) |
| AIM200 – GS – DN 40 CF – 9-Pin DSUB – CAL | D2G014122C | DN 40 CF (2.75″) |
| AIM200 – OS – DN 40 CF – 9-Pin DSUB | D2G0141230 | DN 40 CF (2.75″) |
| AIM200 – OS – DN 40 CF – 9-Pin DSUB – CAL | D2G014123C | DN 40 CF (2.75″) |
| AIM200 – QS – DN 40 CF – 9-Pin DSUB | D2G0141240 | DN 40 CF (2.75″) |
| AIM200 – QS – DN 40 CF – 9-Pin DSUB – CAL | D2G014124C | DN 40 CF (2.75″) |
