Part Number: D04850880, D04860880
Broad Range Vacuum Gauging
When measuring pressure over a large range and requiring exceptional accuracy throughout, broad range vacuum gauges are the ideal option. To guarantee the precision and control of your system, you need trustworthy vacuum gauges. The AIM Series Cold Cathode Gauge, the WRG Series Cold Cathode Combination Gauge, and the APG Series Pirani Gauge are some of our vacuum gauging options.

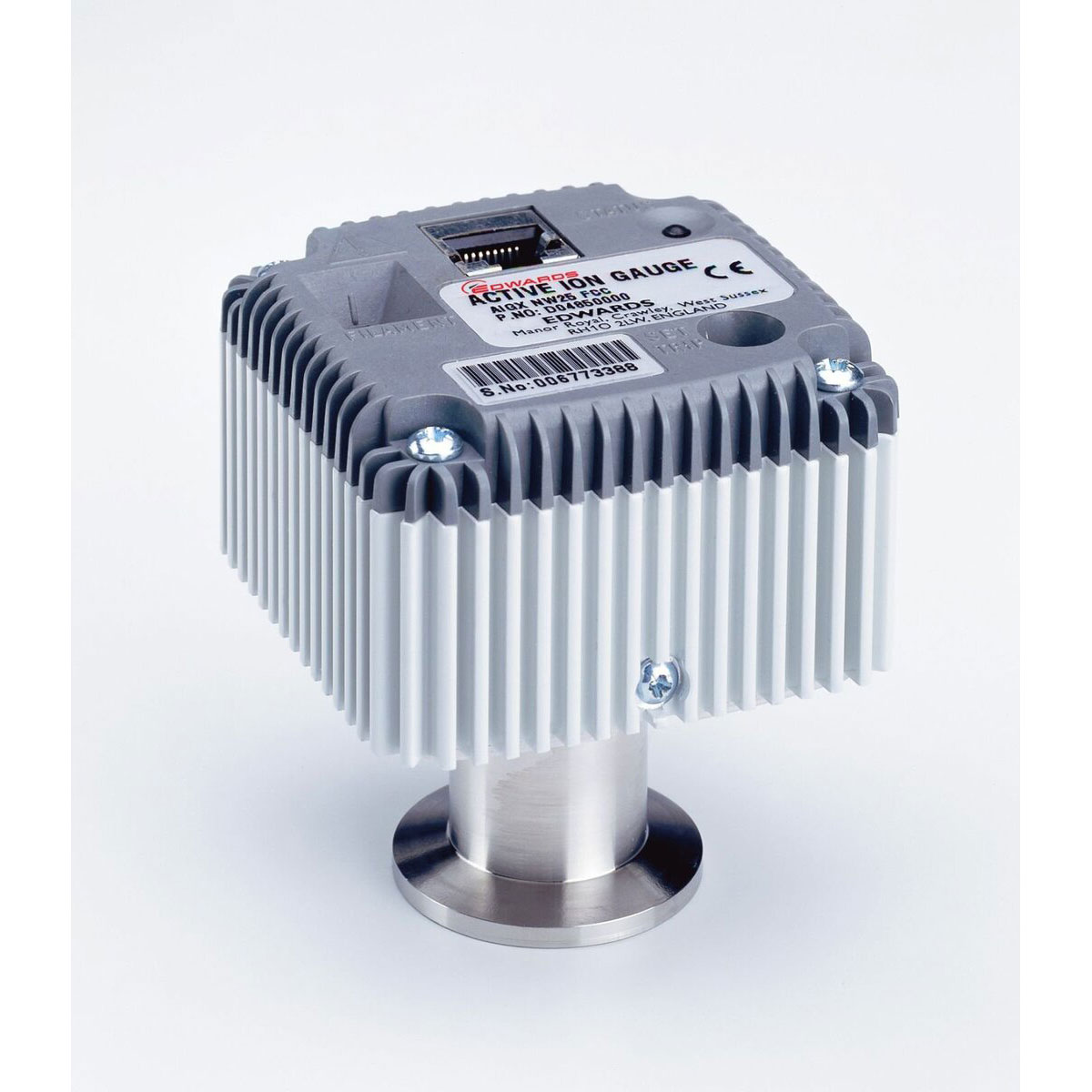

AIGX Series Hot Cathode Gauge
With two yttria-coated iridium filaments, a broad measuring range of 6.6 x 10-2 to 6.6 x 10-10 mbar, and a linear output of 1 Volt per decade, the Active Ion Gauge (AIGX) is a compact active ion gauge. With built-in electronics and a replaceable tube, the AIGX embodies every advantage of the active gauging concept that is industry standard. The gauge comprises measures to safeguard and prolong the life of the filaments, as well as a degas facility. The AIGX is a great option for procedures where background noise is undesired because to its exceptionally low emissions of charged particles.
Features and Benefits
Capable of measuring for an entire eight decades, up to 6.6 x 10-10 mbar (5 x 10-10 Torr).
There are two models available, each with three variations for vacuum coupling: The “D” variants feature a standard interface with a 9-pin “D” connection.
Compared to top competitors, there can be a thirty-fold decrease in charged particle process contamination.
Automatic filament protection that guards against operating at high pressure or degassing when at atmospheric pressure.
General Product Information
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Weight | 0.260 kg |
| Supply Voltage | DC 14.5-30V |
| Dimension Length | 0.070 m |
| IP Rating | IP30 |
| Supply Frequency | DC Voltage |
| Dimension Height | 0.121 m |
| Dimension Width | 0.070 m |
| Connection Power | DSUB 9-PIN – Male |
Environmental Conditions
| Temperature Ambient Storage Min. | 243.15 K |
| Temperature Ambient Storage Max. | 343.15 K |
Classification
| Product Pressure Range | High Vacuum – 1*10-3 – 1*10-7 mbar
Ultra High Vacuum – 1*10-7 – 1*10-11 mbar |
| Principle Of Measurement | Hot-cathode vacuum gauge (Bayard Alpert) |
Material of Construction
| Material Abbreviation | St St |
| Material Filament | Platinum/Iridium |
Performance Data
| Measurement Uncertainty | ±15% of full scale |
| Power Consumption Max | Normal operation: 7W; Degas: 14W (max) |
| Pressure Measurement Max. | 6.60 Pa |
| Pressure Measurement Min.. | 6.600 × 10⁻⁸ Pa |
Operation Conditions – Limitations
| Temperature Baking Max. (Elec. Removed) | 473.15 K |
Variants
| Variant Gauges | AIGX-S (RJ45 (FCC 68) – Female, S-shape 0-10V output)) |
| Certificated Pressure Measurement | None |
Connectivity – Communication Interface
| Communication Interfaces Customer | 0-10 V (analog output – S-shape) |
| Connection electrical comms interface connector | DSUB 9-PIN – Male |
| Setpoint Quantity | 1 |
| Status Indicator | LED |
AIGX-S – NW25 – St St Active Ion Gauge
| Connection electrical comms interface connector | DSUB 9-PIN – Male |
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Pressure Measurement Max. | 6.60 Pa |
| Pressure Measurement Min.. | 6.600 × 10⁻⁸ Pa |
AIGX-S – NW25 – factory calibration
| Connection electrical comms interface connector | DSUB 9-PIN – Male |
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Pressure Measurement Max. | 6.60 Pa |
| Pressure Measurement Min.. | 6.600 × 10⁻⁸ Pa |
AIGX-S DN 16 CF – St St Active Ion Gauge
| Connection electrical comms interface connector | DSUB 9-PIN – Male |
| Connection Vacuum Inlet Flange | DN 16 CF (1.33″) |
| Pressure Measurement Max. | 6.60 Pa |
| Pressure Measurement Min.. | 6.600 × 10⁻⁸ Pa |
AIGX-S DN 40 CF – St St Active Ion Gauge
| Connection electrical comms interface connector | DSUB 9-PIN – Male |
| Connection Vacuum Inlet Flange | DN 40 CF (2.75″) |
| Pressure Measurement Max. | 6.60 Pa |
| Pressure Measurement Min.. | 6.600 × 10⁻⁸ Pa |
AIGX-S DN 40 CF – factory calibration
| Connection electrical comms interface connector | DSUB 9-PIN – Male |
| Connection Vacuum Inlet Flange | DN 40 CF (2.75″) |
| Pressure Measurement Max. | 6.60 Pa |
| Pressure Measurement Min.. | 6.600 × 10⁻⁸ Pa |
AIGX-D – NW25 – St St Active Ion Gauge
| Connection electrical comms interface connector | DSUB 9-PIN – Male |
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Pressure Measurement Max. | 6.60 Pa |
| Pressure Measurement Min.. | 6.600 × 10⁻⁸ Pa |
AIGX-D – DN 16 CF – St St Active Ion Gauge
| Connection electrical comms interface connector | DSUB 9-PIN – Male |
| Connection Vacuum Inlet Flange | DN 16 CF (1.33″) |
| Pressure Measurement Max. | 6.60 Pa |
| Pressure Measurement Min.. | 6.600 × 10⁻⁸ Pa |
AIGX-D – DN 40 CF – St St Active Ion Gauge
| Connection electrical comms interface connector | DSUB 9-PIN – Male |
| Connection Vacuum Inlet Flange | DN 40 CF (2.75″) |
| Pressure Measurement Max. | 6.60 Pa |
| Pressure Measurement Min.. | 6.600 × 10⁻⁸ Pa |
