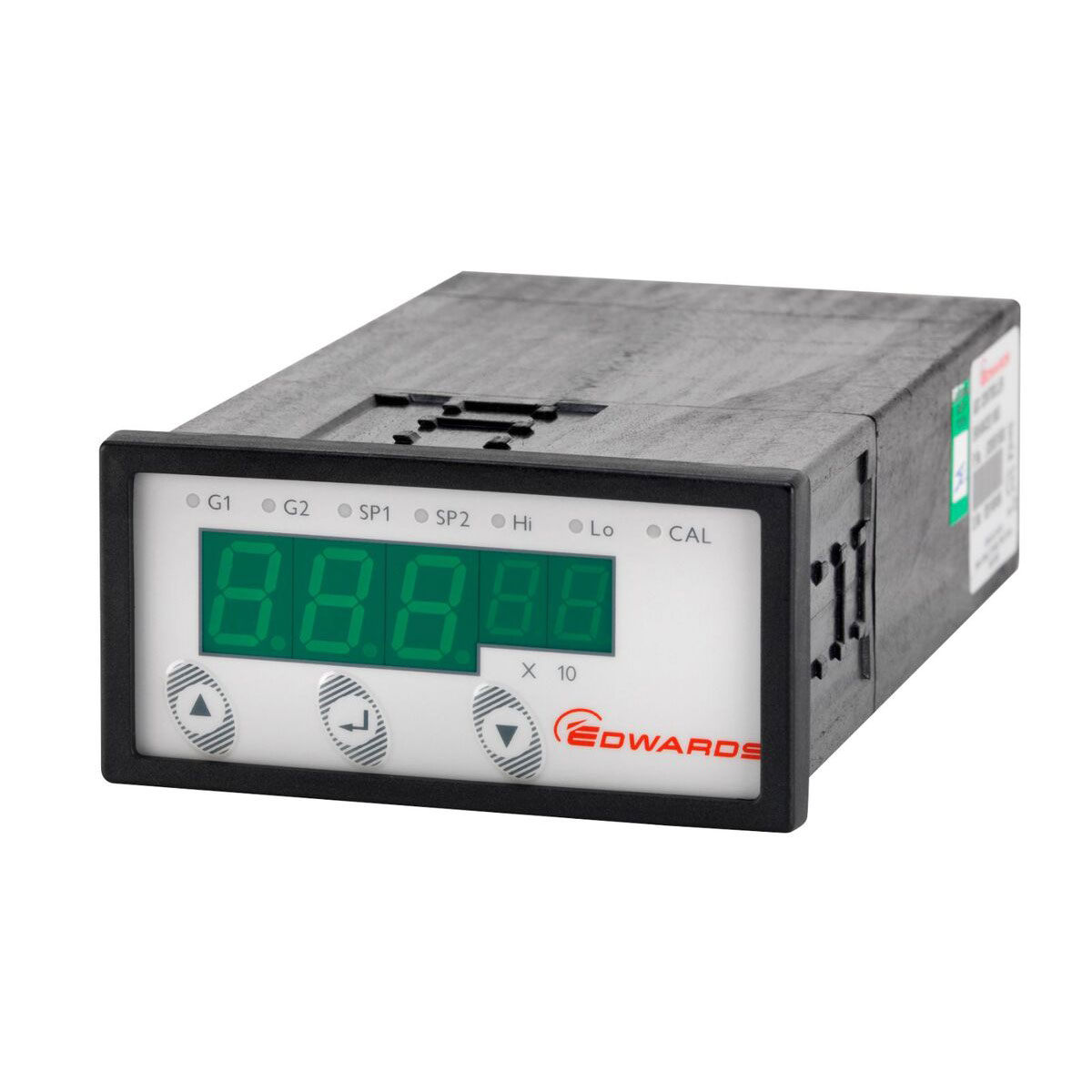

Features and Benefits
In a plug-and-measure setup, the gauge is connected to the mains supply, the pressure is measured, and the ADC displays the result.
Edwards gauges having a total measurement range of 2000 to 1 x 10-9 mbar (1500 to 7.5 x 10-10 Torr) are supported by the ADC.
Readability at a distance is evident because to the bright LED display.
The units shown by the ADC are mbar, Torr, Pascal, or Volts.
Compact 1/8 DIN enclosure that can be bench- or panel-mounted.
Easy-to-use push-button controls ensure a very intuitive operation.
Specifications
General Product Information
| Weight |
0.330 kg |
| Power Supply Phase |
1-Ph |
| Supply Voltage |
1Ph 100-120/200-240V 50/60Hz |
| Dimension Length |
0.159 m |
| IP Rating |
IP40 |
| Dimension Height |
0.043 m |
| Dimension Width |
0.090 m |
| Connection Power |
IEC EN60320 C14 – Male (for C13 plug on mains cable) |
| Measurement Channels |
2 |
Environmental Conditions
| Temperature Ambient Operation Max |
313.15 K |
| Temperature Ambient Operation Min. |
273.15 K |
| Temperature Ambient Storage Min. |
243.15 K |
| Temperature Ambient Storage Max. |
343.15 K |
Performance Data
| Power Total Rated |
15.00 W |
| Pressure Displayed Max. |
2.000 × 10⁵ Pa |
Connectivity – Communication Interface
| Communication Interfaces Customer |
RS232 (serial) |
| Connection electrical comms interface connector |
RJ45 (FCC 68) – Female |
