Features and Benefits
Outstanding accuracy and 0% steadiness in terms of performance
Improvement of the system – Easy integration for improved control with two set points
Adaptable fixes – From little to warm and all in between
Minimal ownership costs –No upkeep needed

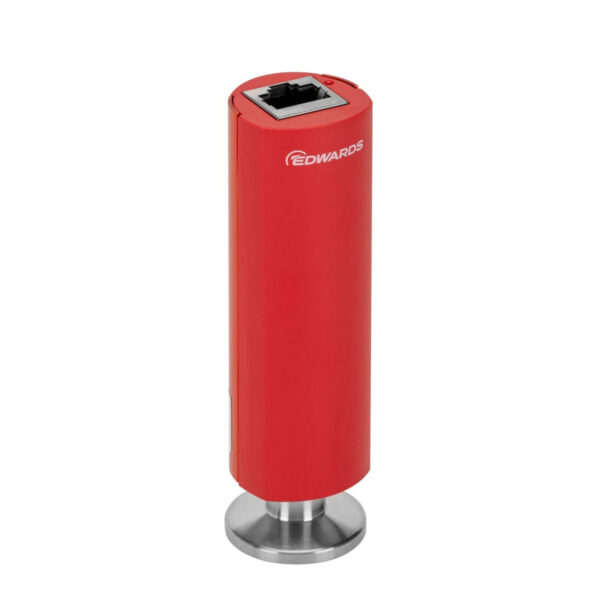

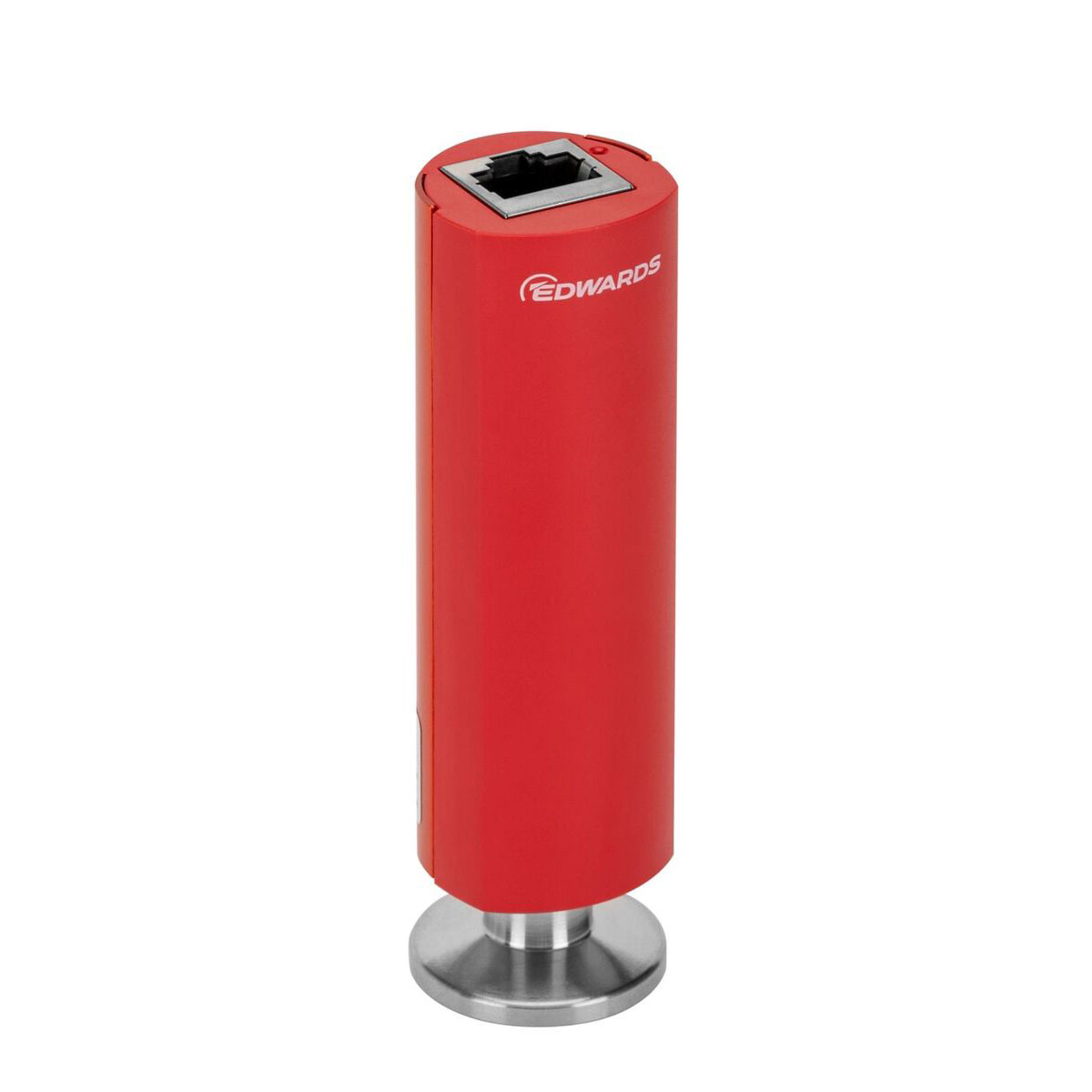

7025m – Miniature
The 7025m is the gauge to use if you need measurement accuracy but are on a tight budget. This gauge is constructed using the same principles as the more expensive Barocel 7000 gauges, and it has superior zero stability and ceramic sensing technology. This gives you the first step toward a more efficient system by recognizing the market need for a smaller, more affordable solution.
Specifications
General Product Information
| Connection Vacuum Inlet Flange |
DN 16 ISO-KF (NW16) |
| Weight |
0.016 kg |
| Supply Voltage |
DC 13-30V |
| Dimension Length |
0.024 m |
| IP Rating |
IP40 |
| Supply Frequency |
DC Voltage |
| Dimension Height |
0.099 m |
| Dimension Width |
0.028 m |
| Connection Power |
RJ45 (FCC 68) – Female |
| Recommended Controller |
TIC – Turbo & Instrument Controller – power and control |
Environmental Conditions
| Temperature Ambient Operation Max |
343.15 K |
| Temperature Ambient Operation Min. |
273.15 K |
| Temperature Ambient Storage Min. |
253.15 K |
| Temperature Ambient Storage Max. |
358.15 K |
Classification
| Product Pressure Range |
Rough Vacuum 1000 mbar – 1 mbar |
| Principle Of Measurement |
Capacitance diaphragm vacuum gauges |
Performance Data
| Measurement Uncertainty |
1% ± temperature effect |
| Power Consumption Max |
3W |
| Pressure Measurement Max. |
1.333 × 10⁵ Pa |
| Pressure Measurement Min.. |
13.33 Pa |
Material of Construction
| Material Exposed To Vacuum |
Stainless steel AISI 316L; Ceramics(Al2O3≥99.5%) |
Operation Conditions – Limitations
| Pressure Inlet Max Overpressure |
6.000 × 10⁵ Pa |
| Temperature Baking Max. |
383.15 K |
Connectivity – Communication Interface
| Communication Interfaces Customer |
0-10 V (analog output – linear) |
| Connection electrical comms interface connector |
RJ45 (FCC 68) – Female |
