Precision Vacuum Gauging
The finest option for measuring and managing your process is a precision vacuum gauge. While these gauges are the most accurate, they only function in a limited pressure spectrum, in contrast to broad vacuum gauges. Edwards provides diaphragm gauges with ASG2 and capacitance gauges with the Barocel series.
Barocel Series Capacitance Manometer
The Edwards Barocel 7000 series is the most precise vacuum gauge we have ever offered. There are three primary models in the Barocel 7000 series: 7025m, 7025, and 7045/7100. These come with various flange configurations and a range of full-scales from 1000 to 0.1 mbar/torr (100 to 10 for the 7025m). This makes it possible to measure and control pressure for more than 70 years, and it makes system fitting easier.
Barocel Gauges were introduced in response to consumer demands for ever-increasing system control and measurement accuracy. We can provide exceptional performance and dependability with our ambient and heated options, so you can fit and forget it.

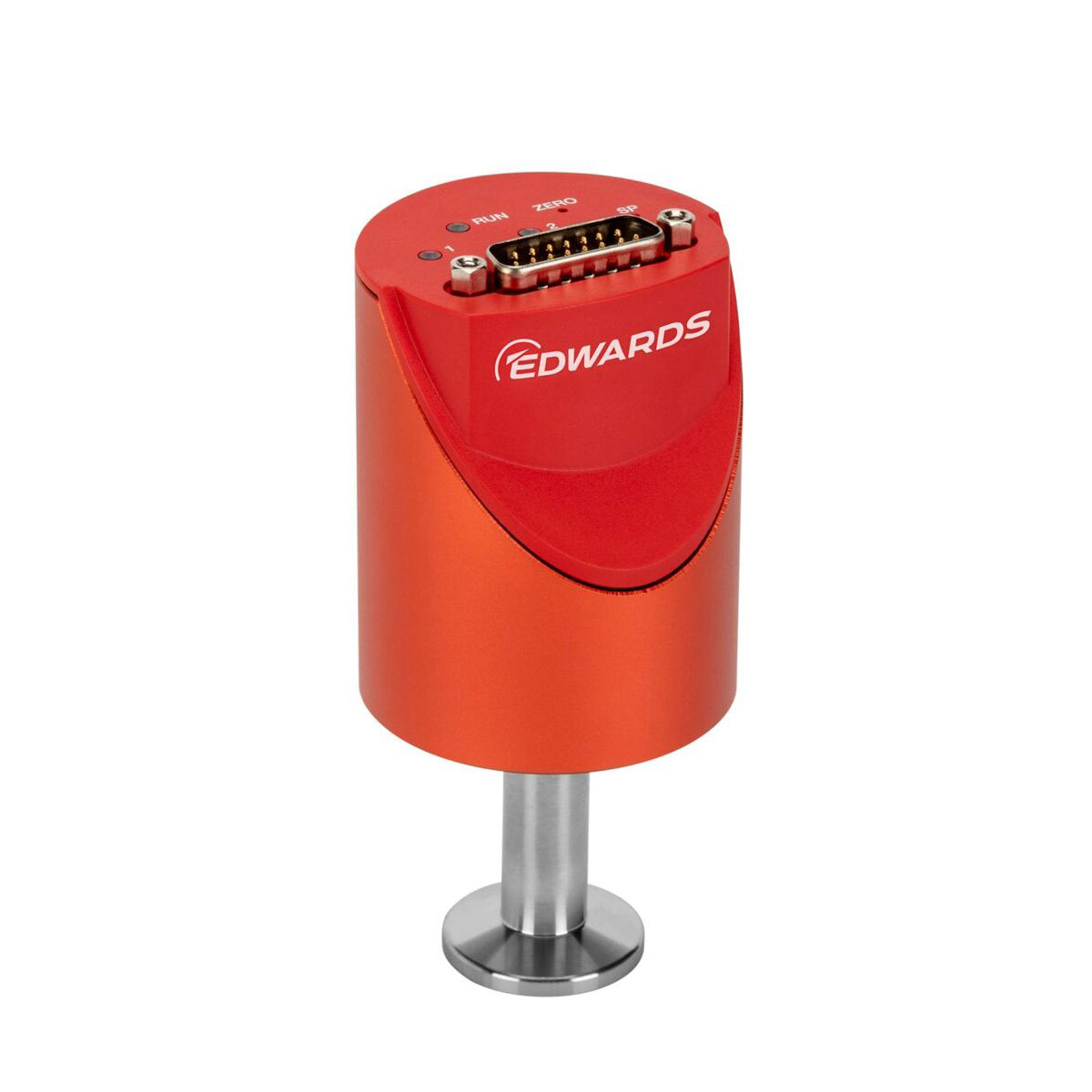

7025 – Standard
This gauge, which is made to consistently provide good performance, is the industry standard for a variety of uses. With numerous levels of internal protection, including baffle, coatings, and shielding included as standard along with exceptional zero stability and any orientation mounting, it offers great accuracy and is made to be fitted and forgotten.
Features and Benefits
Outstanding accuracy and 0% steadiness in terms of performance
Improvement of the system – Easy integration for improved control with two set points
Adaptable fixes – From little to warm and all in between
Minimal ownership costs –No upkeep needed
General Product Information
| Connection Vacuum Inlet Flange | 8″ VCR Female |
| Weight | 0.370 kg |
| Supply Voltage | DC 14-30V |
| Dimension Length | 0.055 m |
| IP Rating | IP30 |
| Supply Frequency | DC Voltage |
| Dimension Height | 0.113 m |
| Dimension Width | 0.055 m |
| Connection Power | DSUB 15-PIN – Male |
| Recommended Controller | TIC – Turbo & Instrument Controller – power and control |
Environmental Conditions
| Temperature Ambient Operation Max | 323.15 K |
| Temperature Ambient Operation Min. | 278.15 K |
| Temperature Ambient Storage Min. | 233.15 K |
| Temperature Ambient Storage Max. | 338.15 K |
Classification
| Product Pressure Range | Rough Vacuum 1000 mbar – 1 mbar |
| Principle Of Measurement | Capacitance diaphragm vacuum gauges |
Performance Data
| Measurement Uncertainty | 0.2% ± temperature effect |
| Power Consumption Max | 1W |
| Pressure Measurement Max. | 1.333 × 10⁵ Pa |
| Pressure Measurement Min.. | 13.33 Pa |
Material of Construction
| Material Exposed To Vacuum | Stainless steel AISI 316L; Ceramics(Al2O3≥99.5%) |
Operation Conditions – Limitations
| Pressure Inlet Max Overpressure | 5.000 × 10⁵ Pa |
| Temperature Baking Max. | 383.15 K |
Connectivity – Communication Interface
| Communication Interfaces Customer | 0-10 V (analog output – linear)
RS232 (serial) |
| Connection electrical comms interface connector | DSUB 15-PIN – Male |
| Short Description | Part Number | Pressure Measurement Max. | Connection Vacuum Inlet Flange |
|---|---|---|---|
| Barocel 7025 – 1000torr DN 16 ISO-KF | W602111120 | 1.333 × 10⁵ | DN 16 ISO-KF (NW16) |
| Barocel 7025 – 1000torr 8VCR | W602111220 | 1.333 × 10⁵ | 8″ VCR Female |
| Barocel 7025 – 1000torr 8VCR ECAT | W602111255 | – | – |
| Barocel 7025 – 1000torr DN 16 CF | W602111320 | 1.333 × 10⁵ | DN 16 CF (1.33″) |
| Barocel 7025 – 100torr DN 16 ISO-KF | W602112120 | 13332.24 | DN 16 ISO-KF (NW16) |
| Barocel 7025 – 100torr 8VCR | W602112220 | 13332.24 | 8″ VCR Female |
| Barocel 7025 – 100torr DN DN 16 CF | W602112320 | 13332.24 | DN 16 CF (1.33″) |
| Barocel 7025 – 10torr DN 16 ISO-KF | W602113120 | 1333.22 | DN 16 ISO-KF (NW16) |
| Barocel 7025 – 10torr 8VCR | W602113220 | 1333.22 | 8″ VCR Female |
| Barocel 7025 – 10torr DN DN 16 CF | W602113320 | 1333.22 | DN 16 CF (1.33″) |
| Barocel 7025 – 1torr DN 16 ISO-KF | W602114120 | 13.33 | DN 16 ISO-KF (NW16) |
| Barocel 7025 – 1torr 8VCR | W602114220 | 13.33 | 8″ VCR Female |
| Barocel 7025 – 1torr DN 16 CF | W602114320 | 13.33 | DN 16 CF (1.33″) |
| Barocel 7025 – 0.1torr DN 16 ISO-KF | W602115120 | 13.33 | DN 16 ISO-KF (NW16) |
| Barocel 7025 – 0.1torr 8VCR | W602115220 | 13.33 | 8″ VCR Female |
| Barocel 7025 – 0.1torr DN 16 CF | W602115320 | 13.33 | DN 16 CF (1.33″) |
| Barocel 7025 – 1000mbar DN 16 ISO-KF | W602121120 | 1.000 × 10⁵ | DN 16 ISO-KF (NW16) |
| Barocel 7025 – 1000mbar 8VCR | W602121220 | 1.000 × 10⁵ | 8″ VCR Female |
| Barocel 7025 – 1000mbar DN 16 CF | W602121320 | 1.000 × 10⁵ | DN 16 CF (1.33″) |
| Barocel 7025 – 100mbar DN 16 ISO-KF | W602122120 | 10000.00 | DN 16 ISO-KF (NW16) |
| Barocel 7025 – 100mbar 8VCR | W602122220 | 10000.00 | 8″ VCR Female |
| Barocel 7025 – 100mbar DN DN 16 CF | W602122320 | 10000.00 | DN 16 CF (1.33″) |
| Barocel 7025 – 10mbar DN 16 ISO-KF | W602123120 | 1000.00 | DN 16 ISO-KF (NW16) |
| Barocel 7025 – 10mbar 8VCR | W602123220 | 1000.00 | 8″ VCR Female |
| Barocel 7025 – 10mbar DN 16 CF | W602123320 | 1000.00 | DN 16 CF (1.33″) |
| Barocel 7025 – 1mbar DN 16 ISO-KF | W602124120 | 100.00 | DN 16 ISO-KF (NW16) |
| Barocel 7025 – 1mbar 8VCR | W602124220 | 100.00 | 8″ VCR Female |
| Barocel 7025 – 1mbar DN DN 16 CF | W602124320 | 100.00 | DN 16 CF (1.33″) |
| Barocel 7025 – 0.1mbar DN 16 ISO-KF | W602125120 | 10.00 | DN 16 ISO-KF (NW16) |
| Barocel 7025 – 0.1mbar 8VCR | W602125220 | 10.00 | 8″ VCR Female |
| Barocel 7025 – 0.1mbar DN DN 16 CF | W602125320 | 10.00 | DN 16 CF (1.33″) |
